Create an automatic map

Source: R/hotspot_map.R
hotspot_map.Rd

hotspot_map() creates a map from an sf object or the result of an sfhotspot analysis using reasonable defaults. Maps include an OpenStreetMap base map by default and are returned as ggplot2::ggplot objects, so they can be customised with ggplot2 layers, scales and themes.

Usage

hotspot_map(object, mapping = NULL, ...)

# S3 method for class 'sf'
hotspot_map(
  object,
  mapping = NULL,
  ...,
  basemap_type = "osm",
  basemap_zoom = NULL,
  basemap_attribution = NULL,
  caption = NULL,
  quiet = TRUE
)

Arguments

object

An sf object or an object returned by an sfhotspot analysis.

mapping

An aesthetic mapping created by ggplot2::aes(), or NULL for no aesthetic mappings. This argument can be used only for ordinary sf objects, not objects with an hspt_* class created by one of the hotspot_*() family of functions.

...

For ordinary sf objects, fixed aesthetics and other arguments passed to ggplot2::geom_sf(). For hotspot-result objects, arguments passed to the corresponding ggplot2::autoplot() method.

basemap_type

A map type passed to the type argument of ggspatial::annotation_map_tile(), or "none" for no base map.

basemap_zoom

The zoom level passed to ggspatial::annotation_map_tile(), or NULL to choose it automatically.

basemap_attribution

Attribution for the tile provider, or NULL to use the statement known for basemap_type. A non-empty string is required for a custom or otherwise unknown map type.

caption

Additional text to display in the map caption, or NULL for no additional text. Any explanatory caption generated by the plotting method is retained above this text and the base-map attribution is retained below it.

quiet

If TRUE (the default), suppress progress bars and other messages. If FALSE, show tile-download progress and other messages.

Value

A ggplot2::ggplot object.

Details

For an ordinary sf object, mapping supplies aesthetic mappings for the feature layer and ... supplies fixed values and other arguments to ggplot2::geom_sf(). Hotspot-result objects determine their own aesthetic mappings, so mapping cannot be supplied for those classes.

Examples

hotspot_map(memphis_robberies, basemap_type = "none")

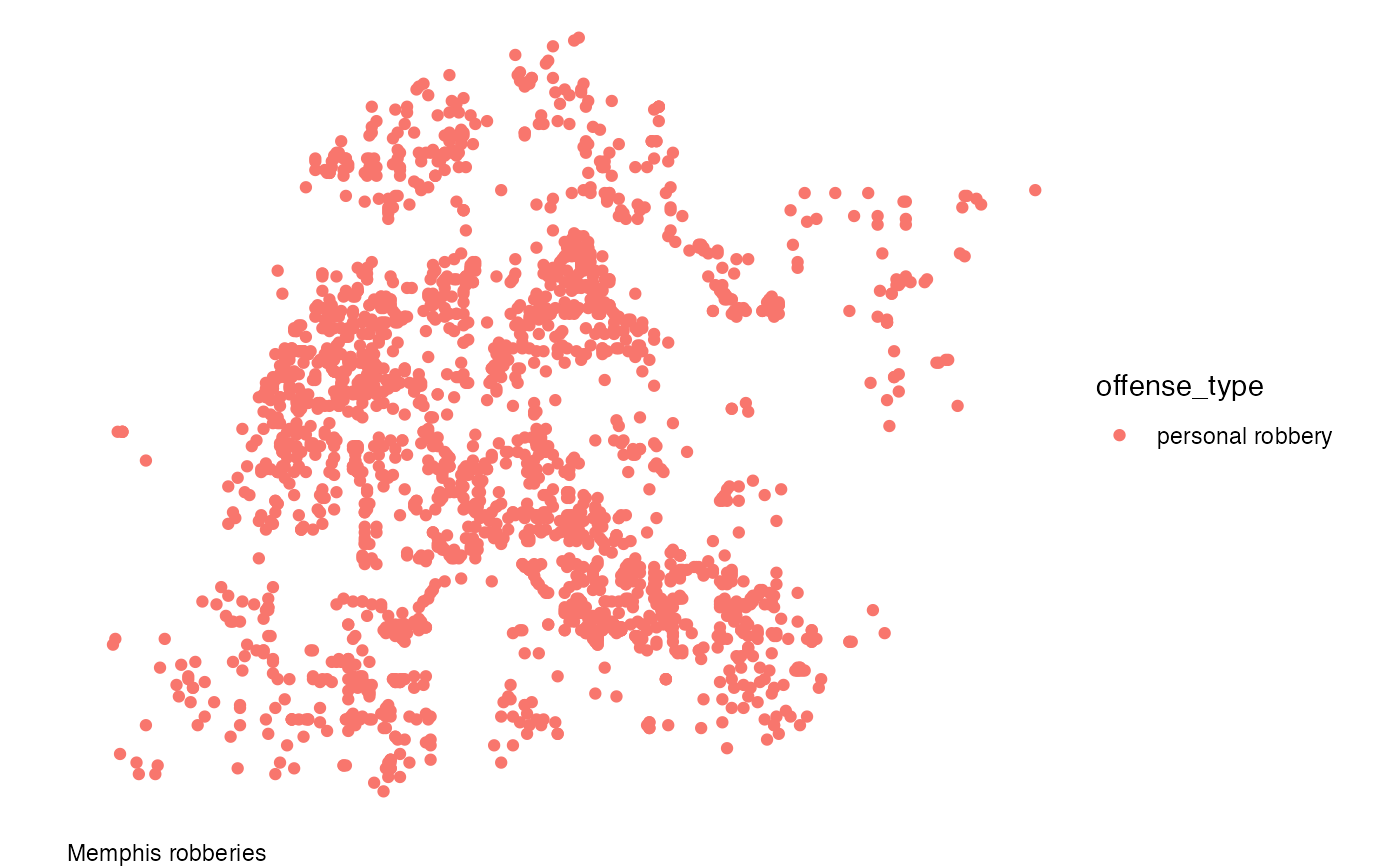

hotspot_map(
  memphis_robberies,
  mapping = ggplot2::aes(colour = offense_type),
  basemap_type = "none",
  caption = "Memphis robberies"
)
